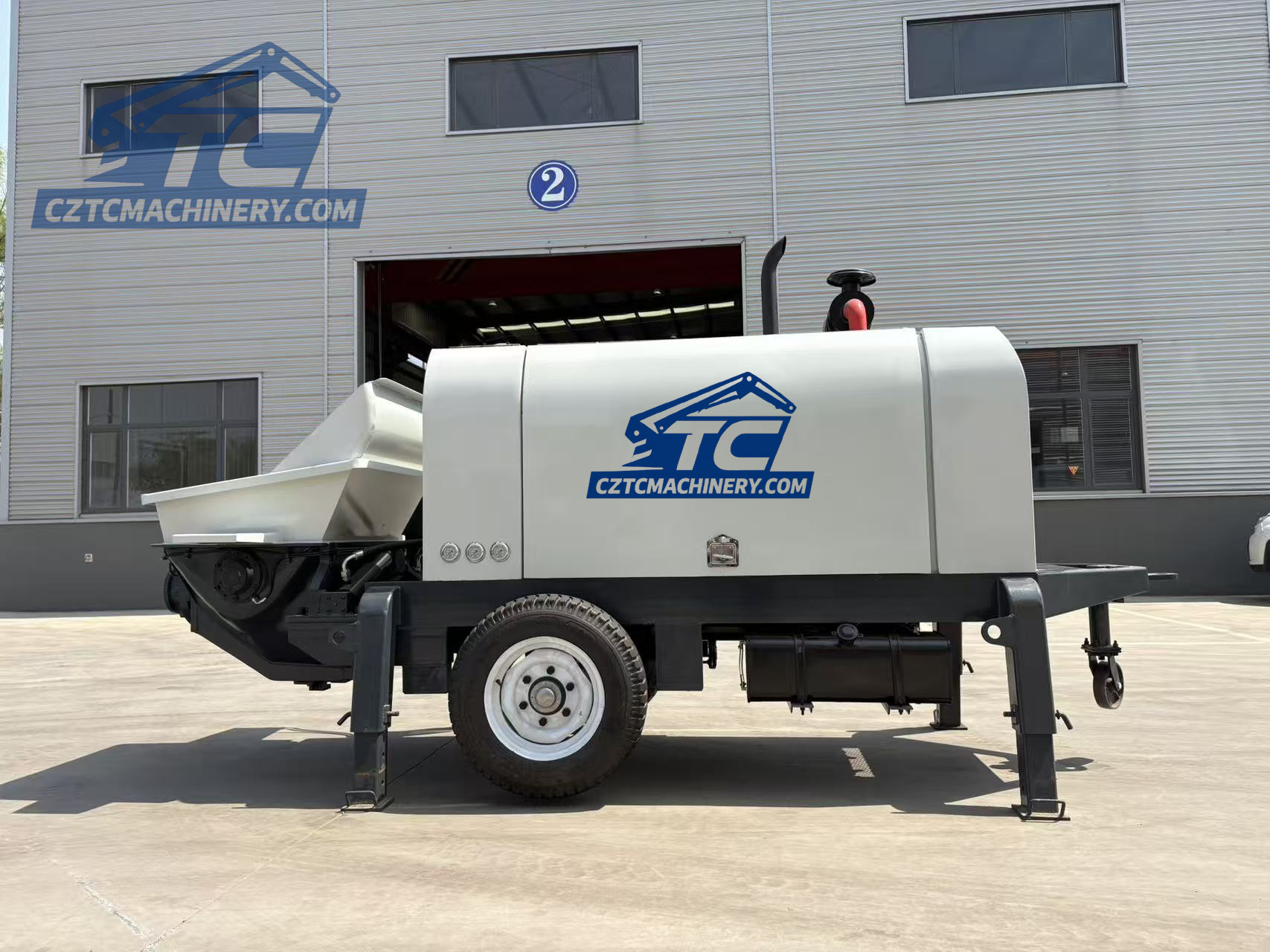

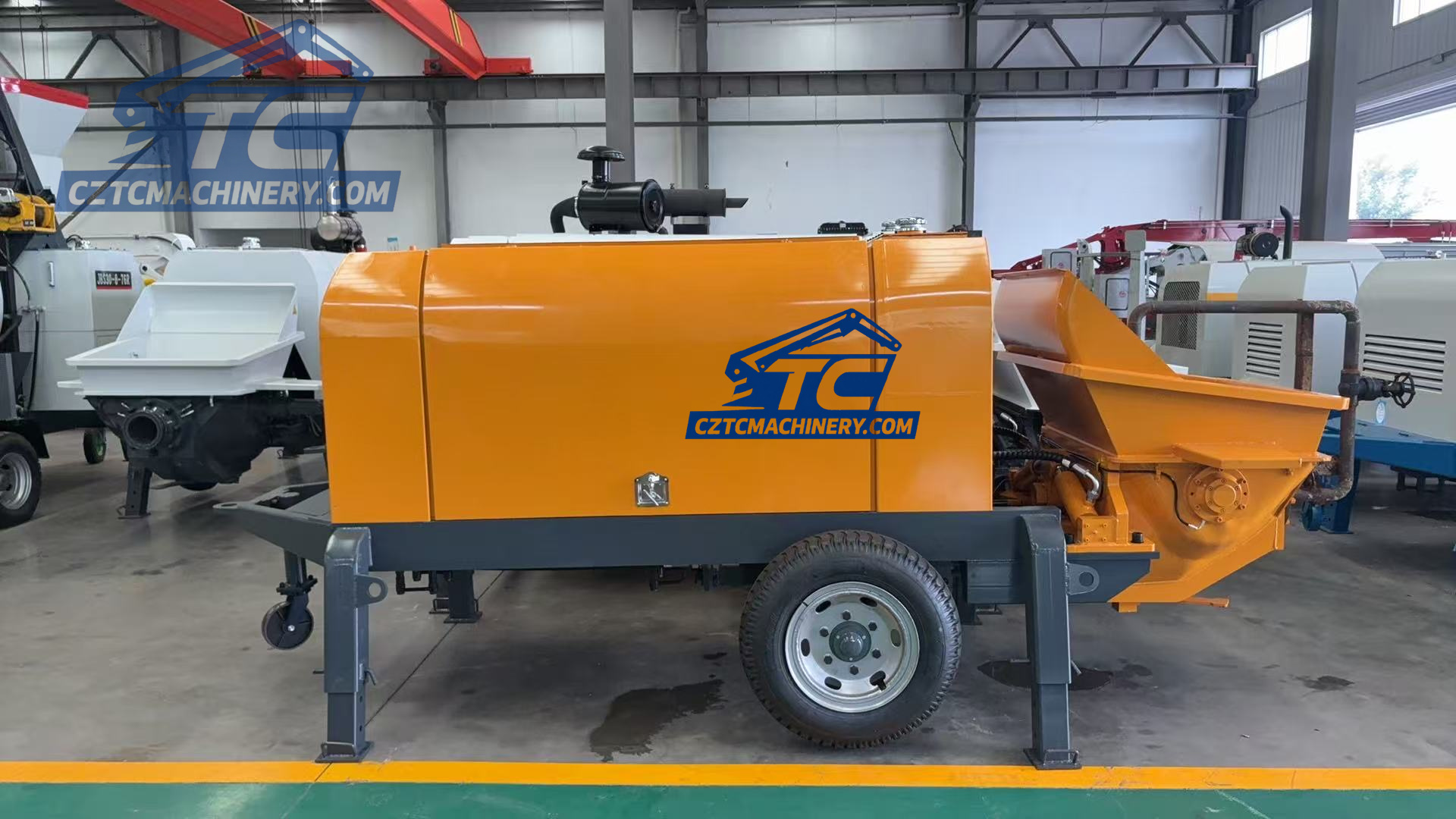

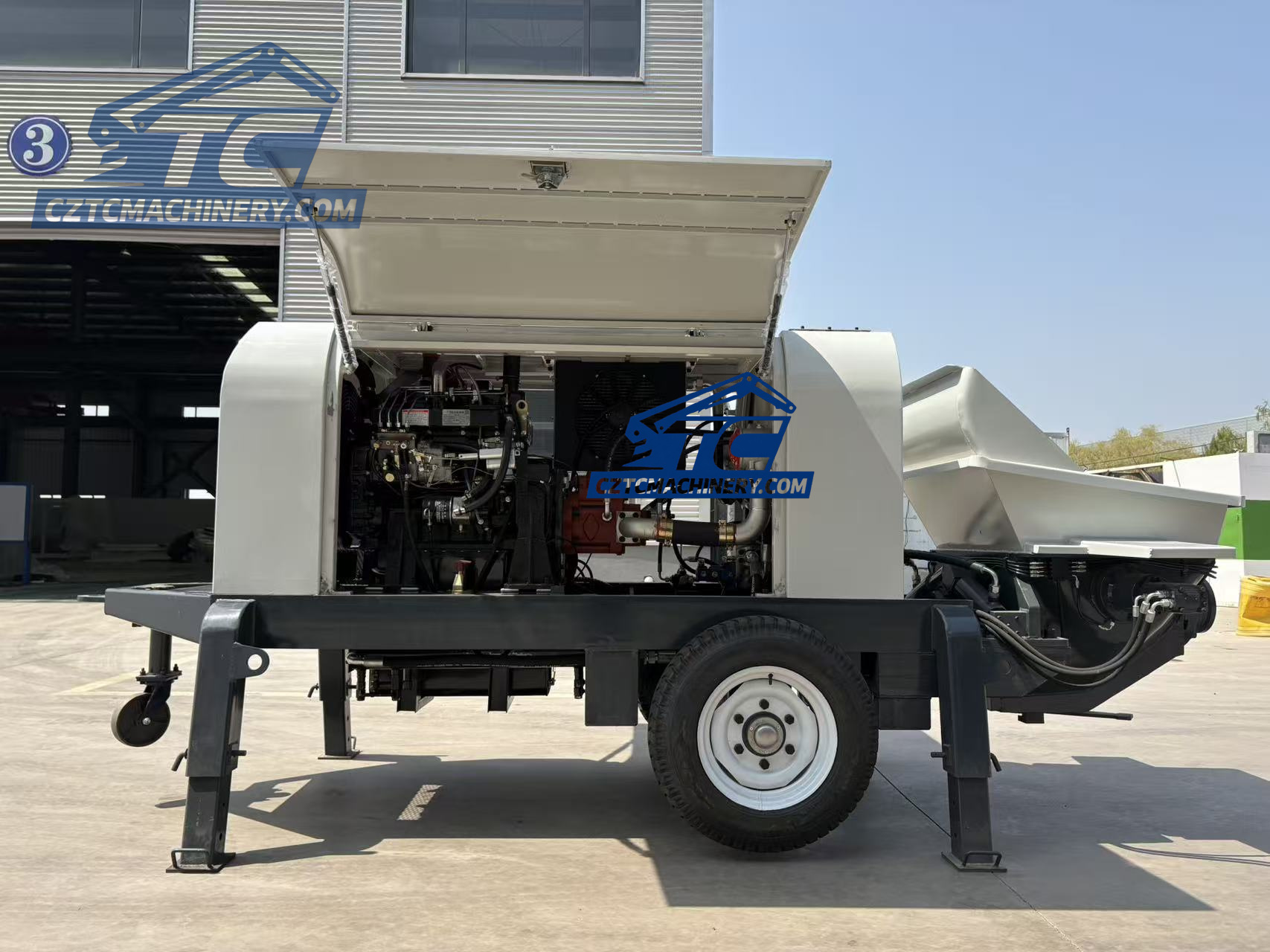

HBT40 Diesel Concrete Trailer Pump | 40m³/h Stationary Concrete Pump

This HBT40 diesel concrete trailer pump is a stationary concrete pumping machine with a production capacity of 40 cubic meters per hour. It is fitted with an S-pipe distribution valve and a Kawasaki 112 main hydraulic pump, which ensures stable pumping pressure and long service life. Equipped with an 82kW Huadong diesel engine, the machine works well in areas without mains electricity. The open-circuit hydraulic system provides a maximum main pressure of 28MPa. The pumping cylinder is Φ180×1000mm, matching Φ125 delivery pipes. The whole machine weighs 3200kg with compact overall dimensions of 4400×1700×1750mm. It can tow at a speed up to 8km/h. Widely used for small building construction, foundation concrete pouring and rural construction projects. We supply complete spare parts and reliable after-sales service.
